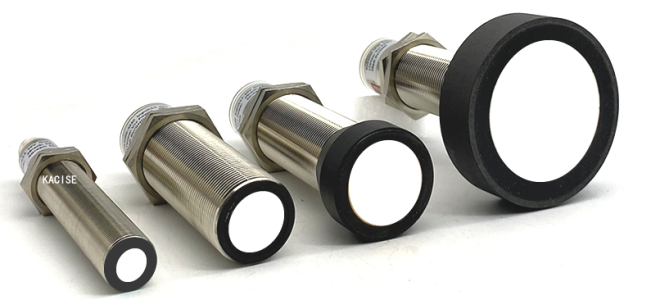

KUS3000 series ultrasonic transmitter
waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66

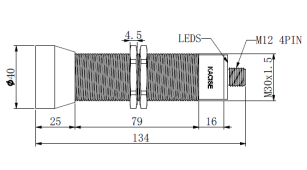

Dimensions

Unit in the diagram is mm.

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66

M18 series transmitter dimensions M30 type1 series transmitter dimensions

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66

M30 type2 series transmitter dimensions M30 type3 series transmitter dimensions

2. Electronic interface and signals definition

waterproof ultrasonic sensor with repeat accuracy ≤1 % and protection degree IP66

Parameter

General specifications

M18
Sensing range 150... 1000 mm
Adjustment range 150….1000mm
Unusable area 0 ... 150 mm
Response delay approx. 10 ms

M30-type1
Sensing range 200... 2000 mm
Adjustment range 200….2000mm
Unusable area 0 ... 200 mm
Response delay approx. 10 ms

M30-type2
Sensing range 300... 3500 mm
Adjustment range 300….3500mm
Unusable area 0 ... 300 mm
Response delay approx. 20 ms

M30-type3
Sensing range 400... 6500 mm or 600-12000mm
Adjustment range 400….6500mm or 600-12000mm
Unusable area 0 ... 400 mm
Response delay approx. 40 ms

Indicators/operating means

LED blue

Flashing: program can be acted, this status

The Blue led will flash around 5 minutes after the sensor power on, indicate the sensor can be programed, and then the blue led will perpetually turn on. To indicate the power status.

LED yellow

indication of the switching state

flashing: during program function object detected

LED red

Normal working: light on indicate error detected.

Programing: flashing, echo lost, that means the sensor covered or no object in the front of the sensor,

Electrical specifications

Operating voltage UB 13 ... 30 V DC, ripple 10 %SS
No-load supply current I0 ≤ 45 mA

IOT version

Operating voltage UB 3.3-16 DC, ripple 10 %SS
No-load supply current I0 ≤ 15 mA, sleep mode≤1mA, waken by uart.,

Input

Input type 1 TEACH-IN input
operating range A1: 0V/GND ... +1 V, operating range A2: +6 V.+UB
input impedance: > 4.7 kΩ ; TEACH-IN program pulse: ≥ 1 s

Output

Output type

1 switch output E4, NPN NO/NC, programmable

2 switch output E4, PNP NO/NC, programmable

3 Analog 0-10V output E4 programmable.

4 Analog 4-20mA output E4 programmable

5 RS485 output E4 programmable.

Rated operating current Ie 200 mA, short-circuit/overload protected
Default setting Switching point A1:150mm Switching point A2: 1000mm
Voltage drop ≤ 2.5 V
Repeat accuracy ≤1 %
Switching frequency f ≤ 13 Hz (customized for high frequency version)
Range hysteresis H 5 % of the set operating distance
Temperature influence ±1% of full-scale value

Ambient conditions

Ambient temperature -25…70℃ (248...343K)
Storage temperature -40…85℃ (233...358K)

Mechanical specifications

Connection V1 connector(M12×1),4-pin
Protection degree IP66
Material Housing brass, nickel-plated
Transducer

epoxy resin/hollow glass sphere mixture;

foam polyurethane, cover PBT

Installation conditions

If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

Ordering information

KUS Body size OUTPUT Max range Description
M18 For M18 body, The max range for M18 is 1000mm
M30-Type1 For M30 body. The max range is 2000mm for M30
M30-Type2 For M30 body. The max range is 3000mm for M30
M30-Type3 For M30 body. The max range is 6000mm for M30
Customized Customized
NPN Output is NPN
PNP Output is PNP
Vout Output is Vout 0-10V
mAout Output is 4-20mA
RS485 Output is RS485
XXX mm

XXX mm is the maxim range can be detected

For M18 the max range is 1000mm

For M30 the max range is 6000mm

KUS M30 RS485 2000mm
