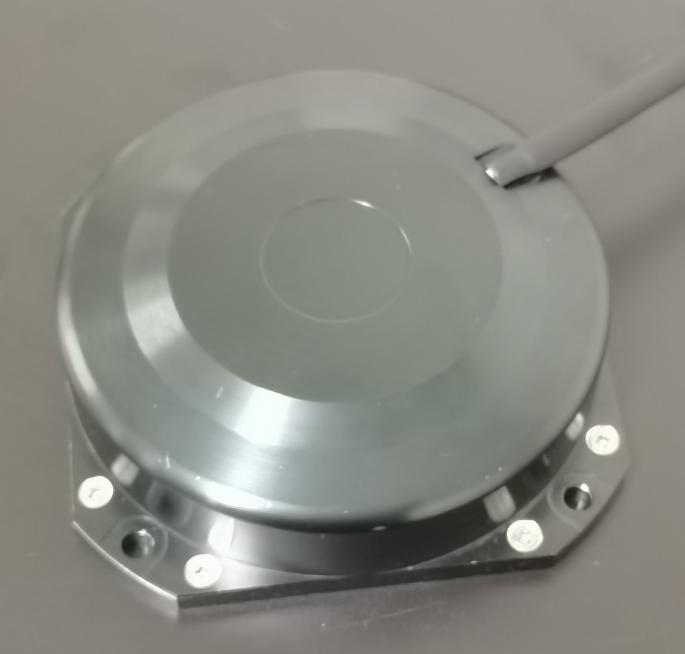

Product Description:
This product functions as an inertial angle rate sensor based on the optical Sagnac effect, measuring the rotational angular velocity along the carrier's sensitive axis. A digital closed-loop detection circuit extracts the optical path difference of clockwise light caused by external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, ensuring real-time detection of angular velocity signals.
Components and Functionality: Comprising an optical angular velocity sensitive unit and a signal detection module, the product provides information on uniaxial angle increments and internal temperature.
Areas of Use: Mainly suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and other applications.
Technical Parameters:
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 120×120×38 | 120×120×38 |
| 2 | start time (s) | 5 | 5 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.001 | ≤0.003 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70 | ≤0.003 | ≤0.006 |
| 5 | Bias repeatability (°) / h | ≤0.001 | ≤0.003 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.0003 | ≤0.0008 |
| 7 | Scale factor non-linearity (ppm) | ≤5 | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤5 | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°) / s | ±300 | ±300 |
| 12 | Supply voltage (V) | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <6 | <6 |
| 14 | weight (g) | ＜1000 | ＜1000 |
