KMK-600 5 In 1 Multi Gas Detector 32-bit Built-in MCU

  • 1
  • 2
  • 3

Brand Name : KACISE

Model Number : KMK-600

Certification : CE

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Place of Origin : china

Accuracy : ≦±5% F.S.

Response Time : ≦30s

Working environment : -20℃～50℃, ＜95%RH (no dew)

Power Source : DC3.7V Li-on battery, 3200mAh

Charging time : 6h~8h

Working time : ≧8h continuously (without alarming)

Contact Now

KMK-600 5 in 1 Multi Gas Detector
Introduction
KMK-600 gas detector with built-in pump, which adopts an advanced integrated circit, with standard intelligent level design technology, and propietary digital analog hybrid communication technology. The gas detector is made of high strength engineering plastics, compound non-slip rubber, with water-proof, dustproof and explosion-proof. We provide gas detector OEM/ODM service.
Product Features

  • Gas pump sampling method and high-sensitivity sensor,with high sensitivity and repeatability.
  • 32-bit built-in MCU, high reliability and self-adaptation ability.
  • Full functions, easy operation.
  • CSTN colorful LCD, more intuitionistic, abundant and clear indication.
  • Compact design, easy carrying.
  • High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
  • 1200pcs data records, can be contacted with computer via software. Can print the data records, can store data records, can make the data analysis.
  • Gas curve display.

Technical Parameters

Gas sampling method Gas pump sampling
Accuracy ≦±5% F.S.
Response Time ≦30s
Indication LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state.
Working environment -20℃～50℃, ＜95%RH (no dew)
Power Source DC3.7V Li-on battery, 3200mAh
Charging time 6h~8h
Working time ≧8h continuously (without alarming)
Gas Sensor Life 2 years
Explosion-proof grade Ex ib llC T4 Gb
Weight Appr. 400g (with battery)
Dimensions 130mm×67mm×30mm(L × W × H)

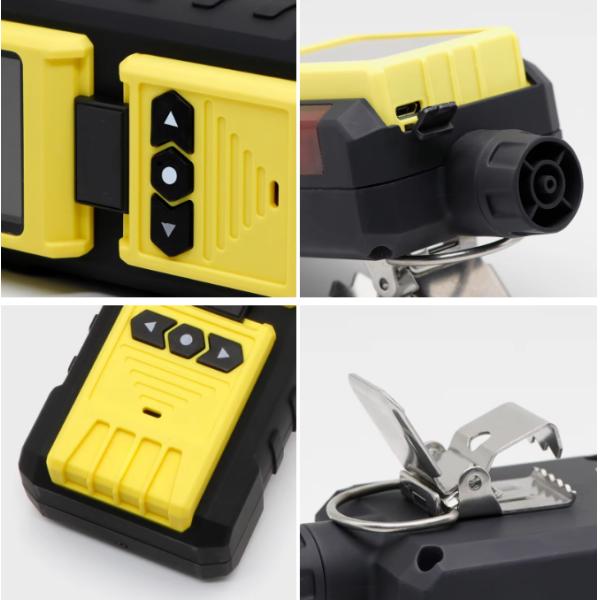

Detailed Images

KMK-600 5 In 1 Multi Gas Detector 32-bit Built-in MCU

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
